Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine

1 مجموعه
MOQ
USD EUR
قیمت
Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
قطر لوله: 90-315
قدرت اکسترودر: 75 کیلو وات
رنگ: سفارشی
شماره لوله: یک لوله
مواد خام: پودر و مواد افزودنی پی وی سی
برنامه: لوله تأمین آب
ولتاژ: 380 ولت 50 هرتز یا سفارشی
درجه خودکار: کاملاً اتمی
طرح: پیچ دوقلو و بشکه
خدمات پس از فروش ارائه شده است: مهندسان موجود برای ماشین آلات خدمات در خارج از کشور ، نصب میدانی ، راه اندازی و آموزش ، پشتیبانی آنل
گارانتی: 18 ماه
اینورتر: ابهام
رنگ: قابل تنظیم
مواد خام: پودر پی وی سی
موتور: برند زیمنس
کنتاکتور: زیمنس یا اشنایدر
پیچ و بشکه: اکسترودر پیچ دوقلوی مخروطی
قطر پیچ: 80/156
کاربردی لوله: فاضلاب و زهکشی
برجسته کردن:

Automatic PVC pipe slotting machine,High-speed PE pipe grooving machine,Plastic PP pipe cutting equipment

,

High-speed PE pipe grooving machine

,

Plastic PP pipe cutting equipment

اطلاعات اولیه
محل منبع: Zhangjiagang ، Jiangsu
نام تجاری: LB
گواهی: CE ISO9001
شماره مدل: LB-315
پرداخت
جزئیات بسته بندی: بسته عادی
زمان تحویل: 30 روز کاری
شرایط پرداخت: L/C، T/T
قابلیت ارائه: 15 مجموعه در هر ماه
توضیحات محصول

Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine


Short Description

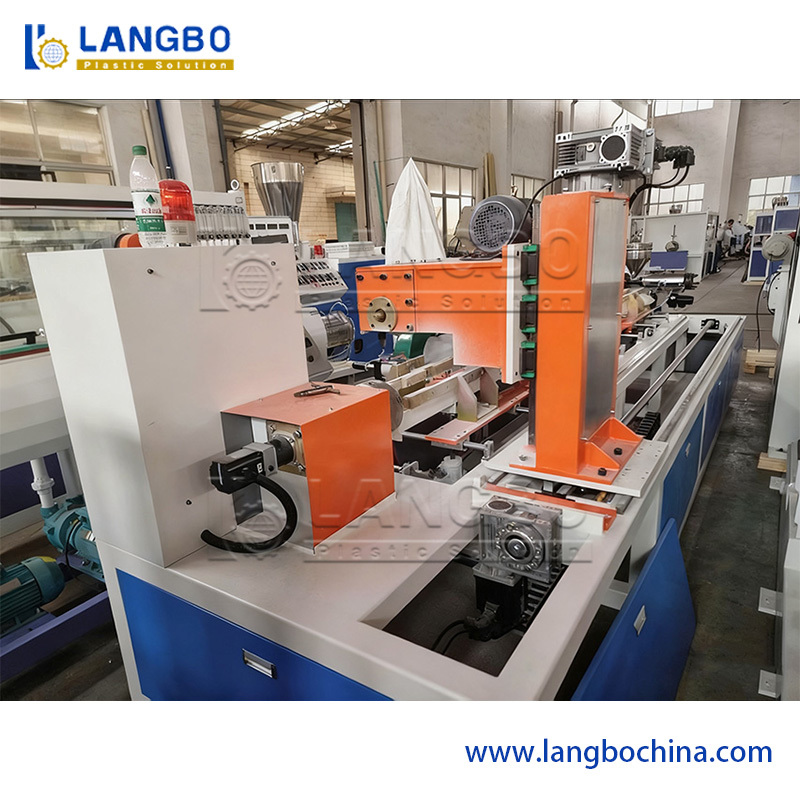

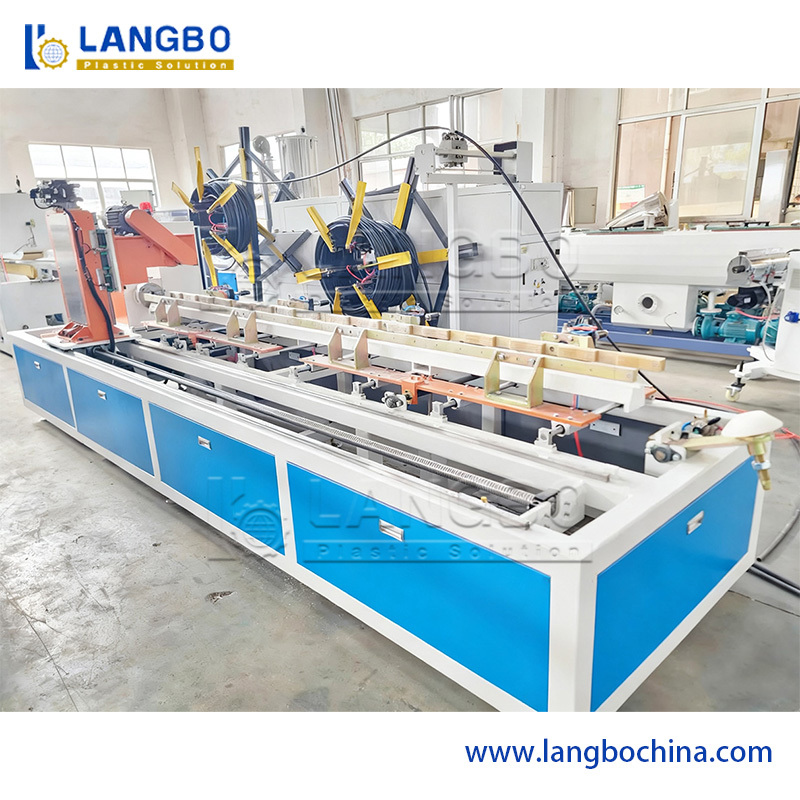

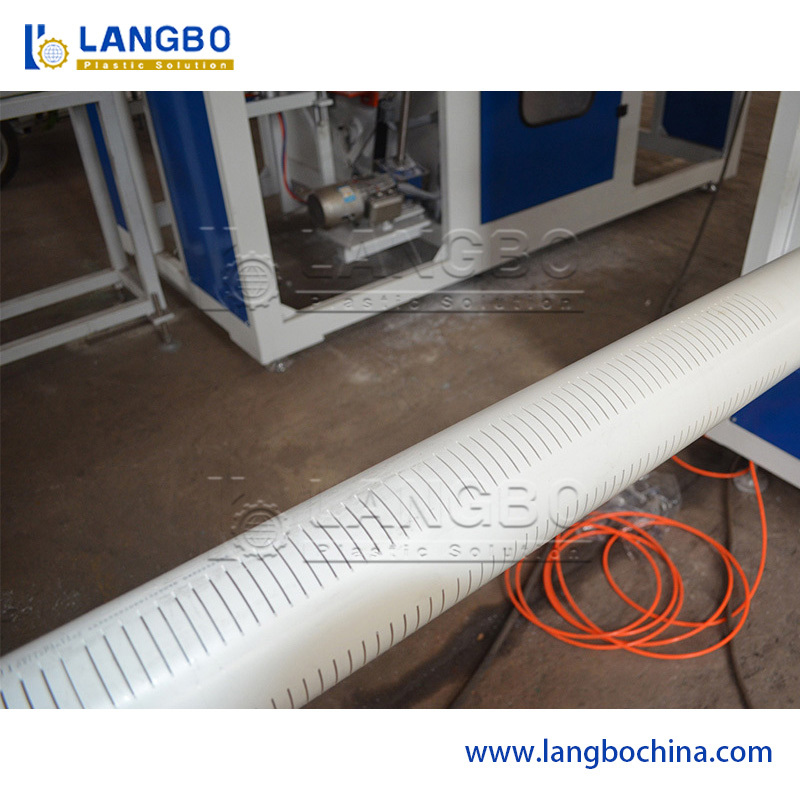

Slotting machine is mainly used for PVC and PE pipe slotting, which is widely used in playgrounds, parks, lawns for drainage or sewage pipes.

Product Advantages
1. Automatic slotting machine is divided into two kinds: in-line and out-of-line.
2. Dust removal equipment: the equipment comes with dust removal equipment to ensure the environment of the equipment and workshop.
3. high speed: this equipment can complete the pipe grooving process in 3-5 minutes.
4. PLC control system, fully automatic control, easy to operate.

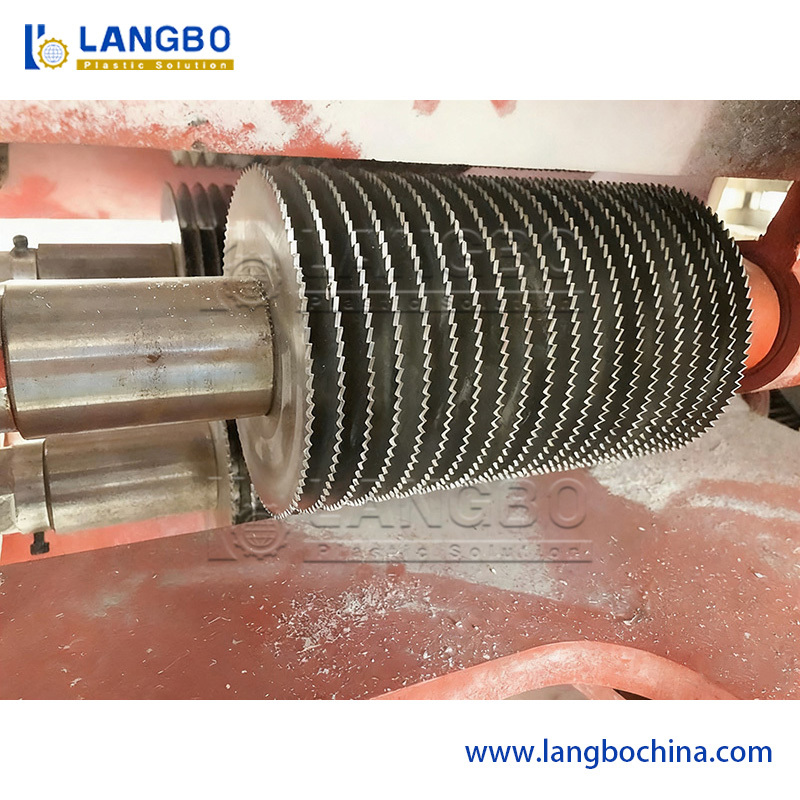

5. this equipment has different grooving blade combination design, respectively 1/2/3/4 groups of knife shaft design, can be used for different bit surface grooving requirements.

Specification
Model
Diameter
Center height
Pipe Length
Compressed air pressure
Total power
Main motor
Elevating servo motor
Overall size
Blade Material
LB160
110-160mm
700-900mm
3-6m
0.6MPa
11KW
3KW
0.75KW
6000*1250*1800mm
W18Cr4V


Product Description

Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 0Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 1Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 2Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 3Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 4Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 5

High-Accuracy and High-Speed Performance: This machine is designed for high-accuracy and high-speed performance, making it an ideal choice for various industries such as hotels, garment shops, and construction works.

Customizable to Customer Requests: The machine can be customized to meet the specific voltage requirements of the customer, ensuring seamless integration into existing production lines.

Delivery Information
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case

Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.


Company profile

Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 6


Service and support

Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 7

Our factory

Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 8Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 9

Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 10


Certificate

Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 11 Automatic High Speed Plastic PP PE PVC Pipe Slotting Grooving-Cutting Machine 12


F & Q:

Are you a trading company or factory? Can I have a factory visiting?

We are a factory that produces machines for customers directly. Yes, our production plant can be visited at any time. We are in Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you are near to us, the pick-up service is available.

How to build trust with Langbo

We can send working videos showing the machine running perfectly in several countries for online communication. We will provide customer-focused and tailored technical suggestions.


For offline contact, you can visit our factory and talk about the machine face to face, you can find our competence in the field of plastic extrusion and tell our ability in machine building.

Is the shipping cost included in the quotation?

Usually, our quotation contains FOB Shanghai as a shipment condition. This means the shipping cost between the delivery and destination ports will not be included in the quotation. The shipping cost fluctuates according to the delivery company and shipping date. Langbo can help customers to get the latest shipping price. Customers decide if we add the shipping cost to the quotation or choose a shipping agent by themselves.


What will happen after order confirmation

confirmation of Configuration

Sign of Proforma invoice

30% of total price pre-payment for production starting

Test running in the house, customers on-site or video connecting

Confirmation of machine condition

70% of the total price for delivery preparation

Confirmation of Delivery date

Shipping to customer

On-site commissioning

Training in machine operation and maintenance

Confirmation of handover

One year guarantee

Whole lifecycle service and technical support

What is the Payment Method?

T/T, D/P, Letter of credit, Cash transaction

How to guarantee the machine quality made by Langbo

We provide one year guarantee and whole-lifecycle technical support for our product. During in-house test running, customers can check the machine on-site. Any point for optimization will be done immediately.

How can customers get the exact machine as they wish?

Factory visiting before order

Product sample posting to Langbo for a better understanding of customer’s expectations and configuration communication

On-site checking during test running

Do you have CE Certification?

Yes. Both our extrusion machine and plastic recycling machine have CE Certification.

What is the delivery time between order confirmation and delivery?

Usually 45 days. Depended on the certain project, the exact delivery time will be wrote on contract.

What are services for after-sale

One-year quality guarantee.

Quick response for technical support

Problem analysis for production problems

What means one-year quality guarantee

After the handover of the machine, Langbo provides free new parts for every non-man-made damage.

How to get the required area of the machine?

For a new plant, you can contact me. (sales@langbochina.com/ whatsapp:8615962377824) After knowing your demand, I can make the detailed solution and layout of the machine line. Meanwhile, I will provide technical guidance of your installation and specification.
