APPLICATION:

For the extruding online processes with multi, proportional and high precise of materials like pellets, sheets, regrinds or powder in plastics industry. Gravimetric dosing and blending unit for direct installation on the inlet flange of a plastics processing machine or on floor stand. The unit can dose and blend up to 4 components by standard and can be tailored for 6 components or more. Material blending with high accuracy and repeatability, specifically designed for injection moulding/blow moulding machines and extruders with an throughput from 50kg/h to 3000kg/hr. Actual metered and weighed amounts are constantly checked against the pre-selected set values by a modern PLC based control. This guarantees an exceptionally high recipe accuracy (±0.1~±0.3%)

PE PIPE PRODUCTION SPECIFICATIONS:

PE Pipe Extrusion Production Line Process Flow

Raw material → mixing→vacuum feeding → material dryness → single screw extruder → Forming mould → winding machine→finished product inspecting &packing

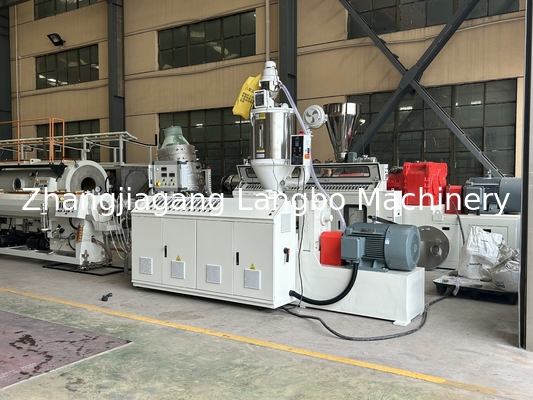

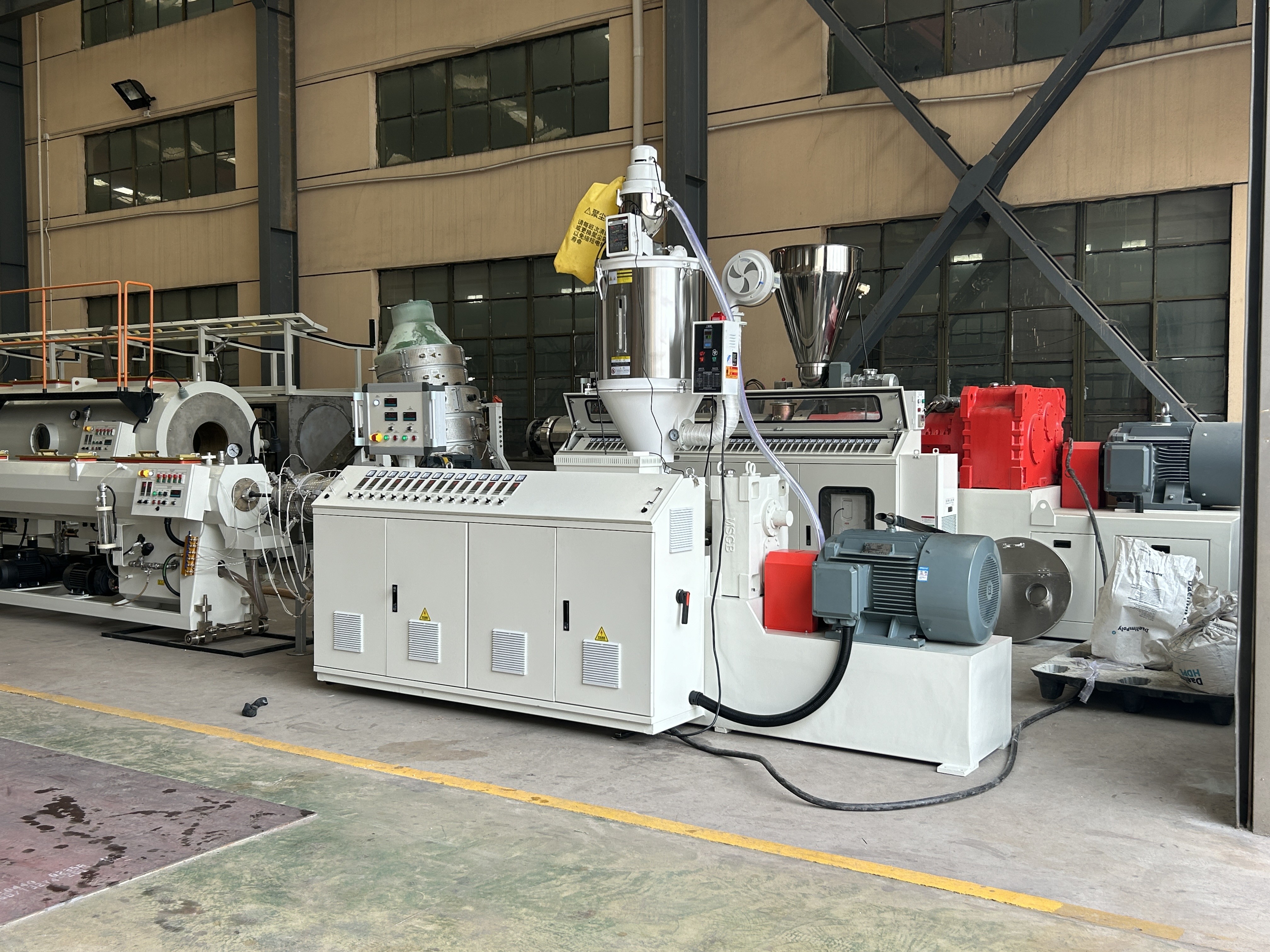

Single Screw Extruder Machine

Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

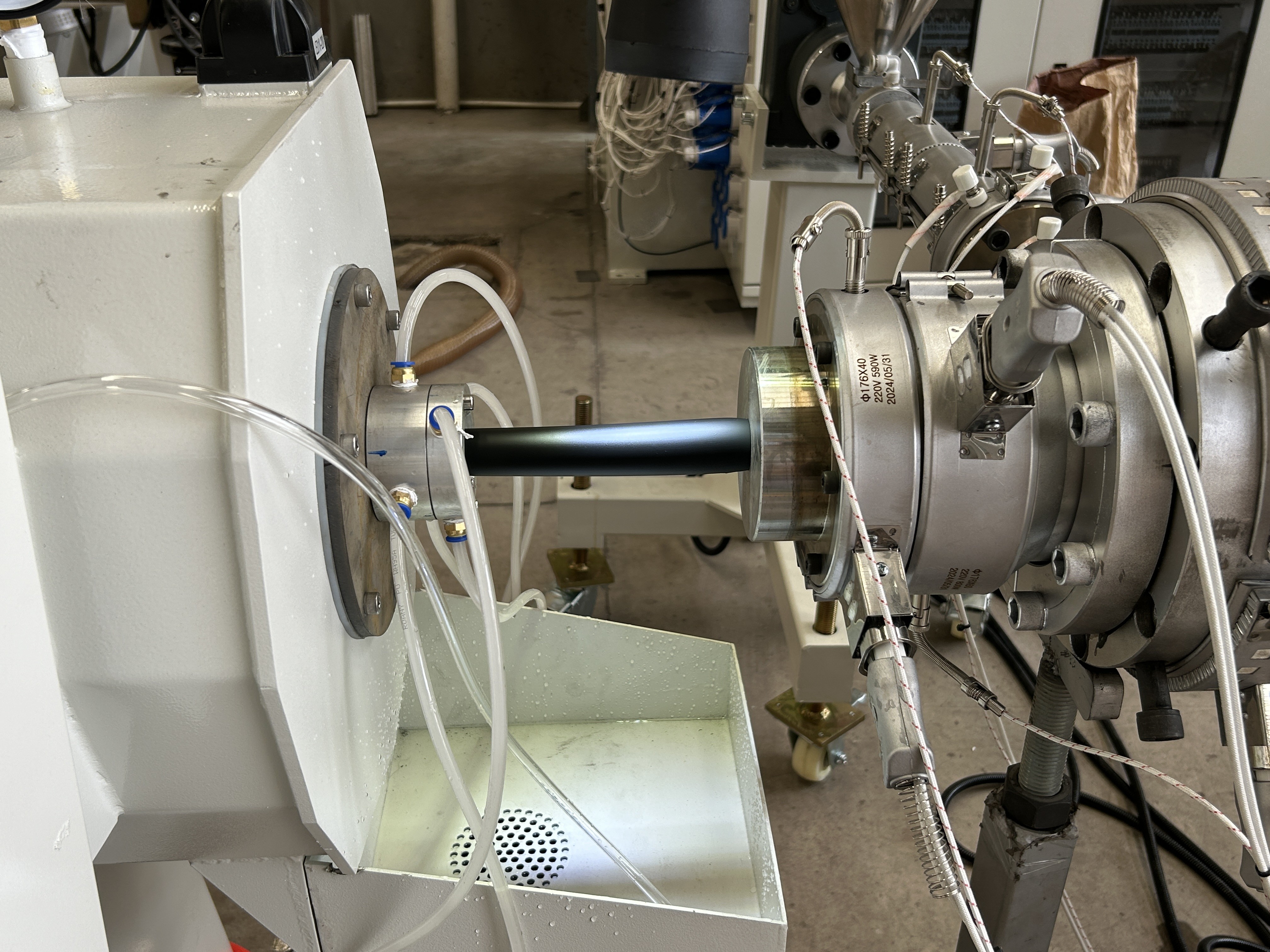

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

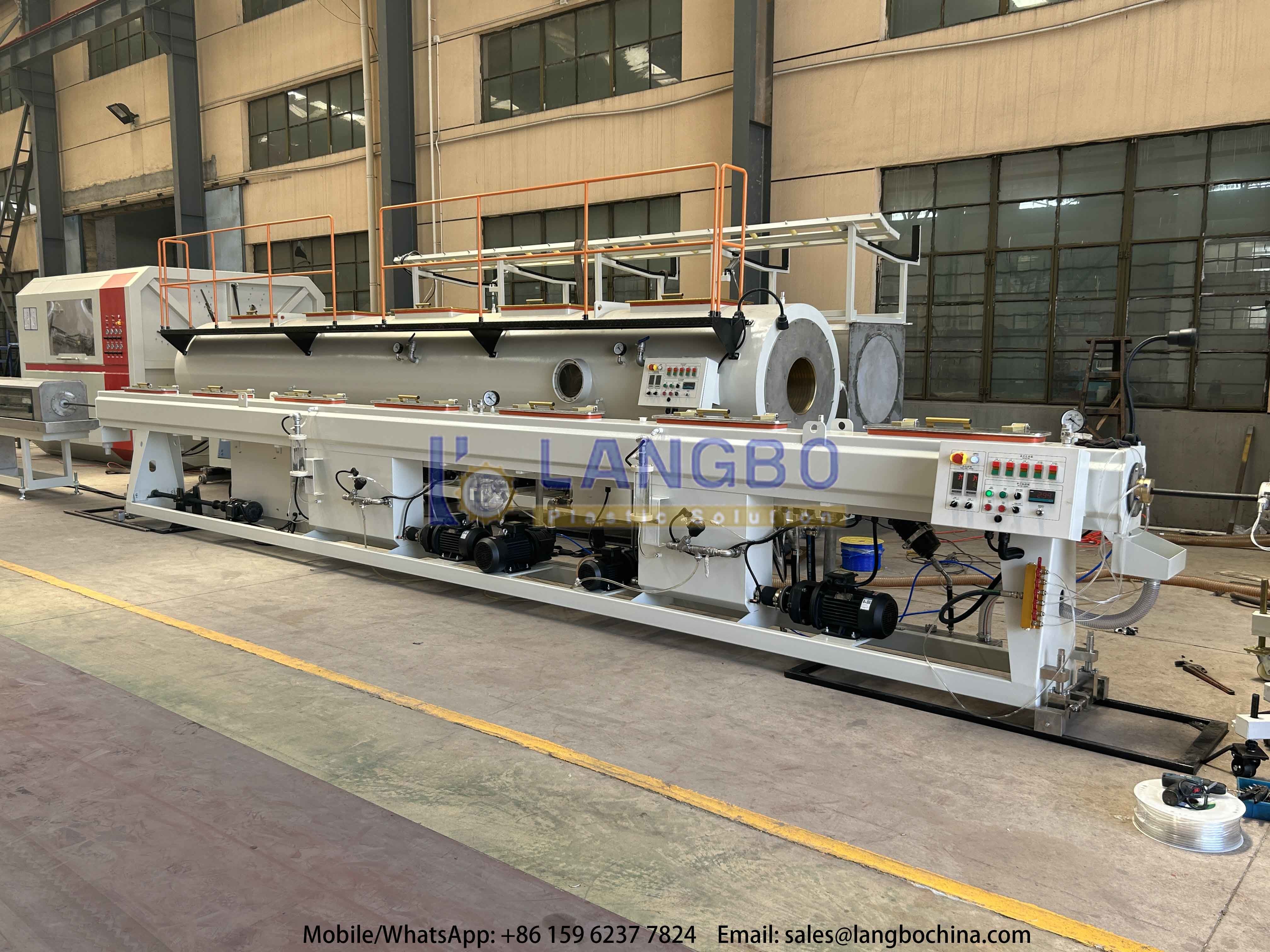

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

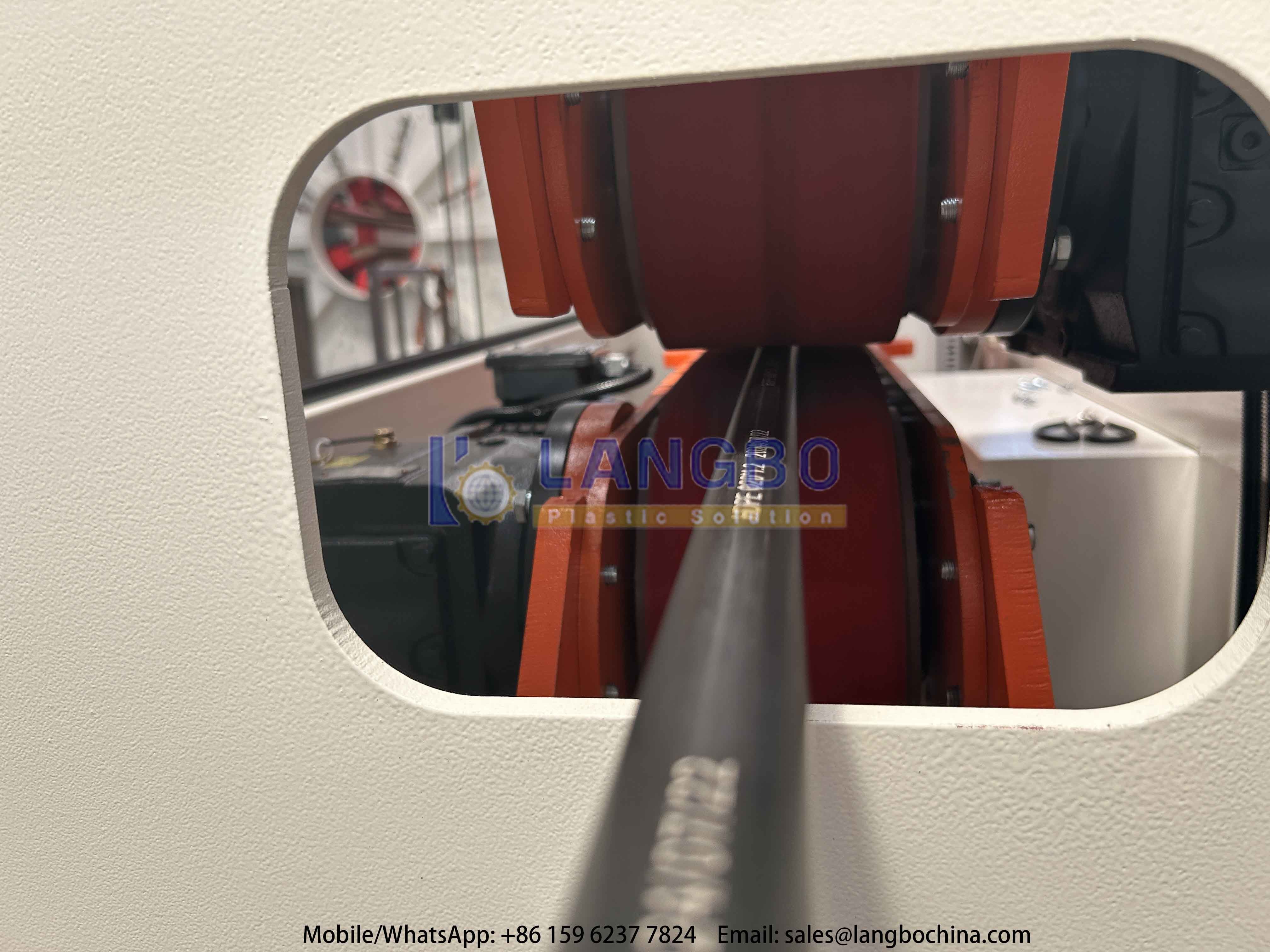

Haul off machine:
Adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

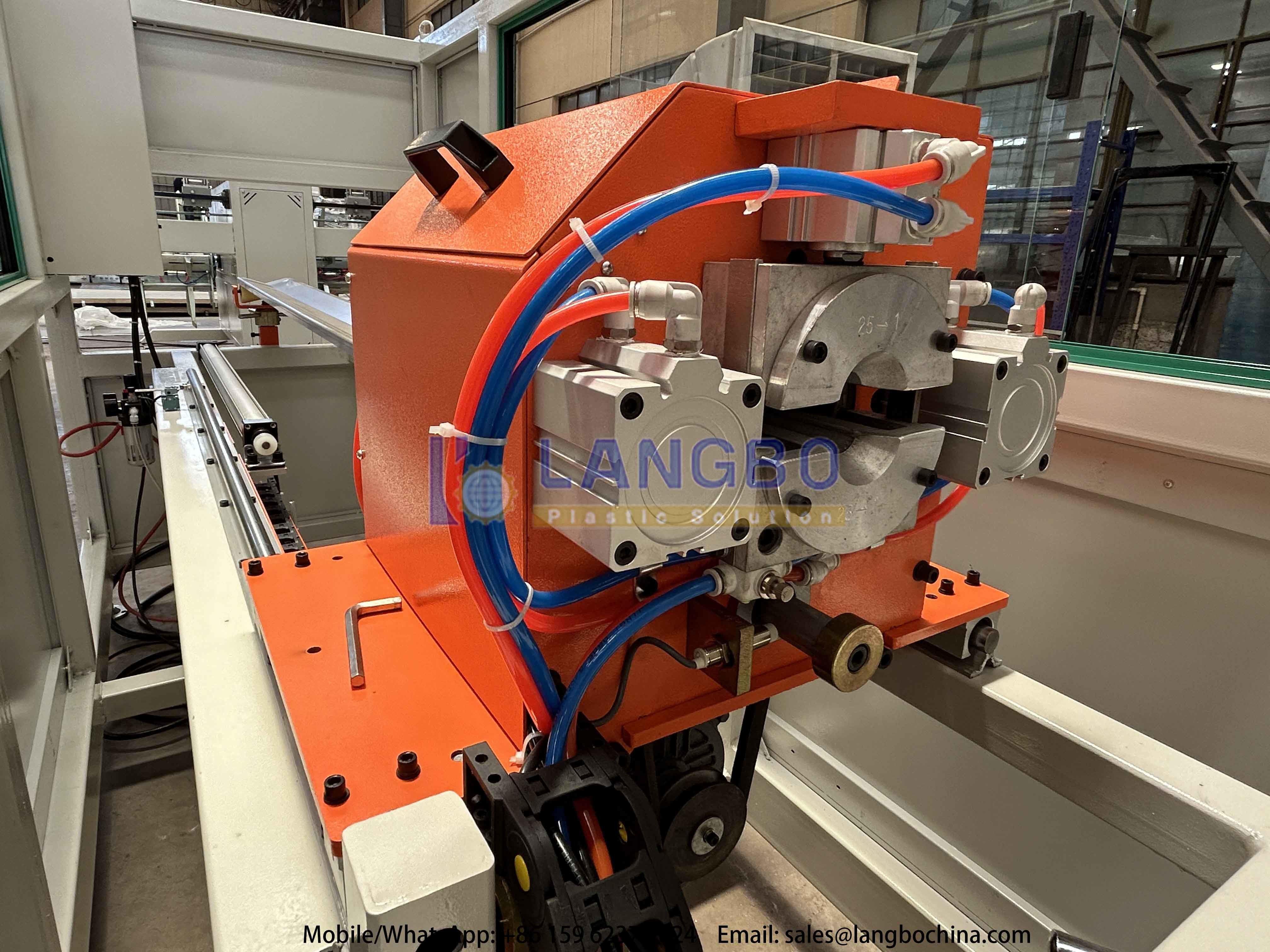

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.

Optional Auxiliary Systems

Inkjet printing for marking pipe specifications.

Key Advantages of PE Pipe Extrusion Line

Automated control via PLC for consistent quality.

Energy-efficient extruder design.

Compatible with PE materials.

Output range: Ø16mm–Ø1200mm (customizable).
