Plastic PE Water Cable Pipe Extruder Making Machine Plastic Pipe Line

Plastic PE Water Cable Pipe Extruder Making Machine Plastic Pipe Line

APPLICATION:

High production efficiency, Steady running, lower maintenance cost.

Optional PLC control system or Manual type is optional at customer's requests for machine operation.

Superior quality of high speed gear box, with advantages of high torque, high speed, low noise, hard gear tooth face, it can prolong its service life

Siemens, ABB, RKC, Omron and so on, as Standard Electrical Part.

Optional choice: weight per meter for material control device, can make sure the weight of per meter for extruded pipe

PE PIPE PRODUCTION SPECIFICATIONS:

Application of HDPE pipes

1. Municipal water supply, gas supply and agriculture etc.

2. Commercial & Residential water supply

3. Industrial liquids transportation

4. Sewage treatment

5. Food and chemical industry

Working process:

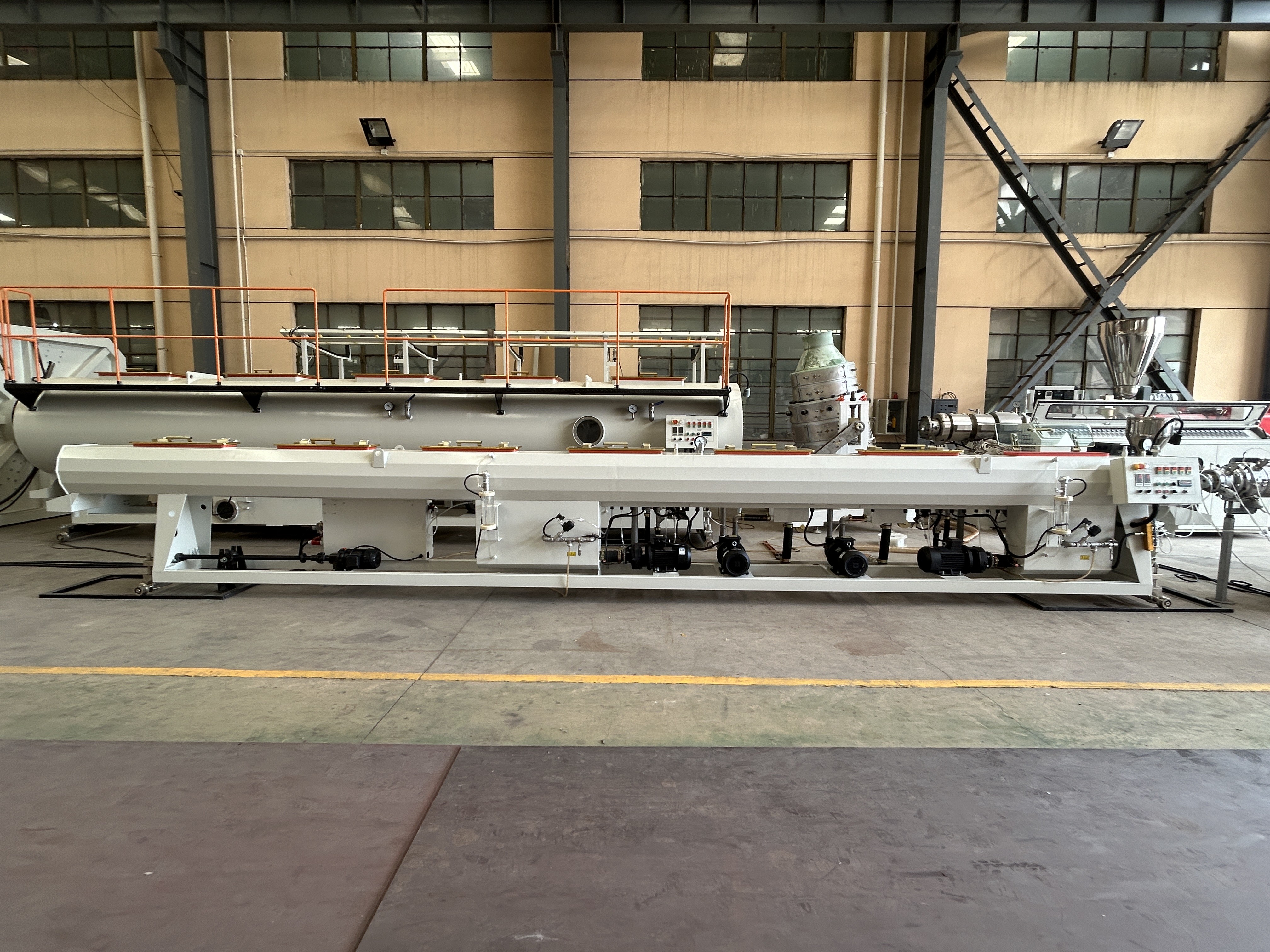

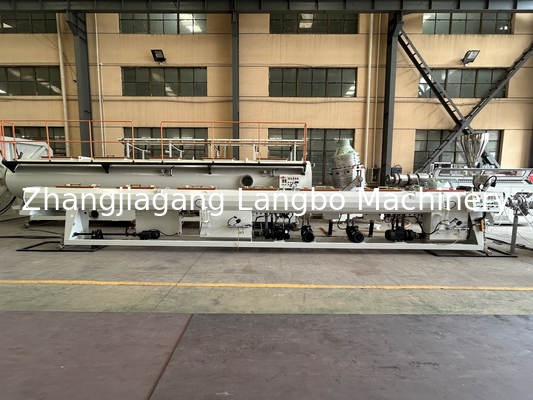

Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker

Material Feeding – PE resin pellets are fed into the hopper of the extruder.

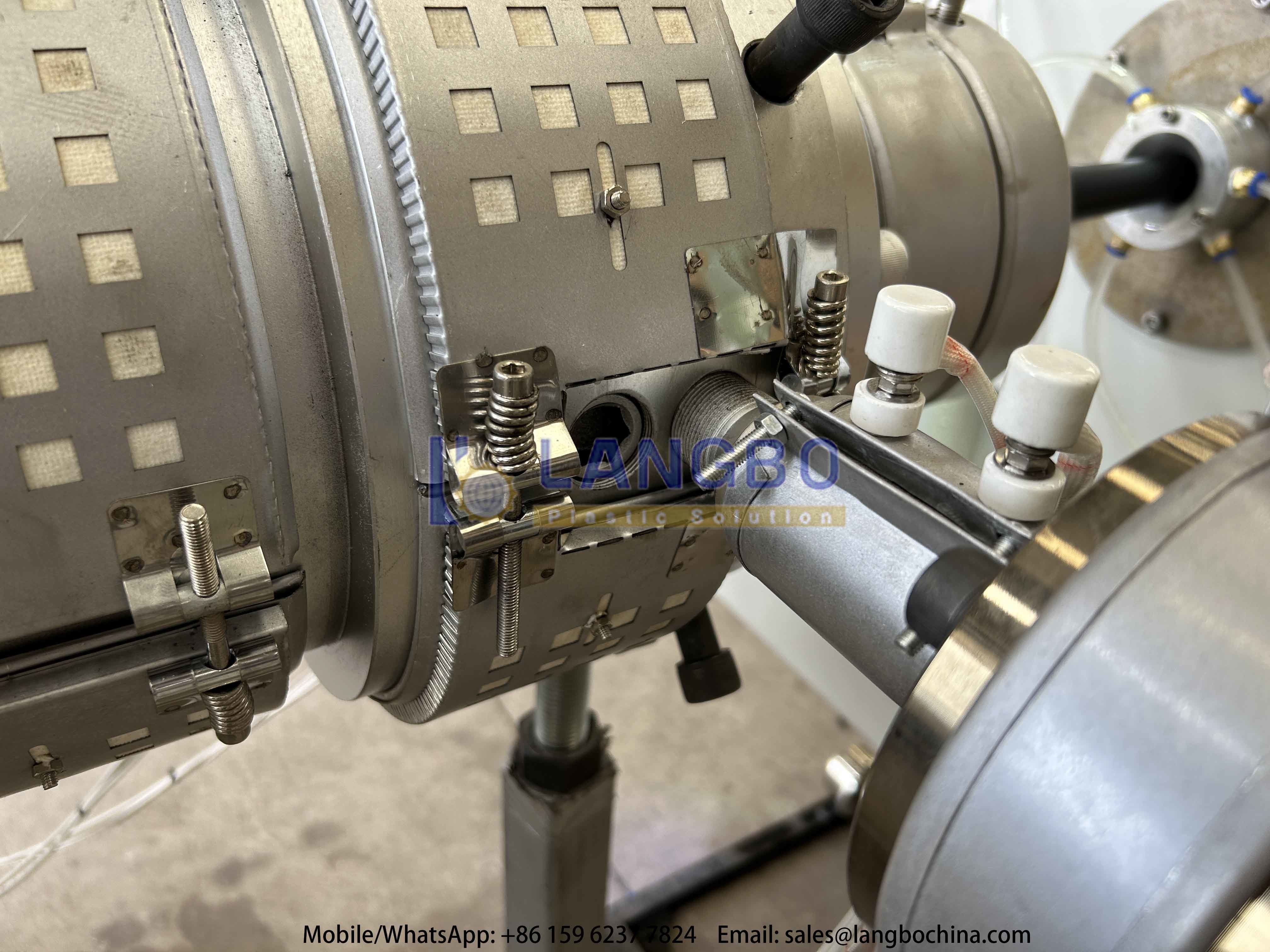

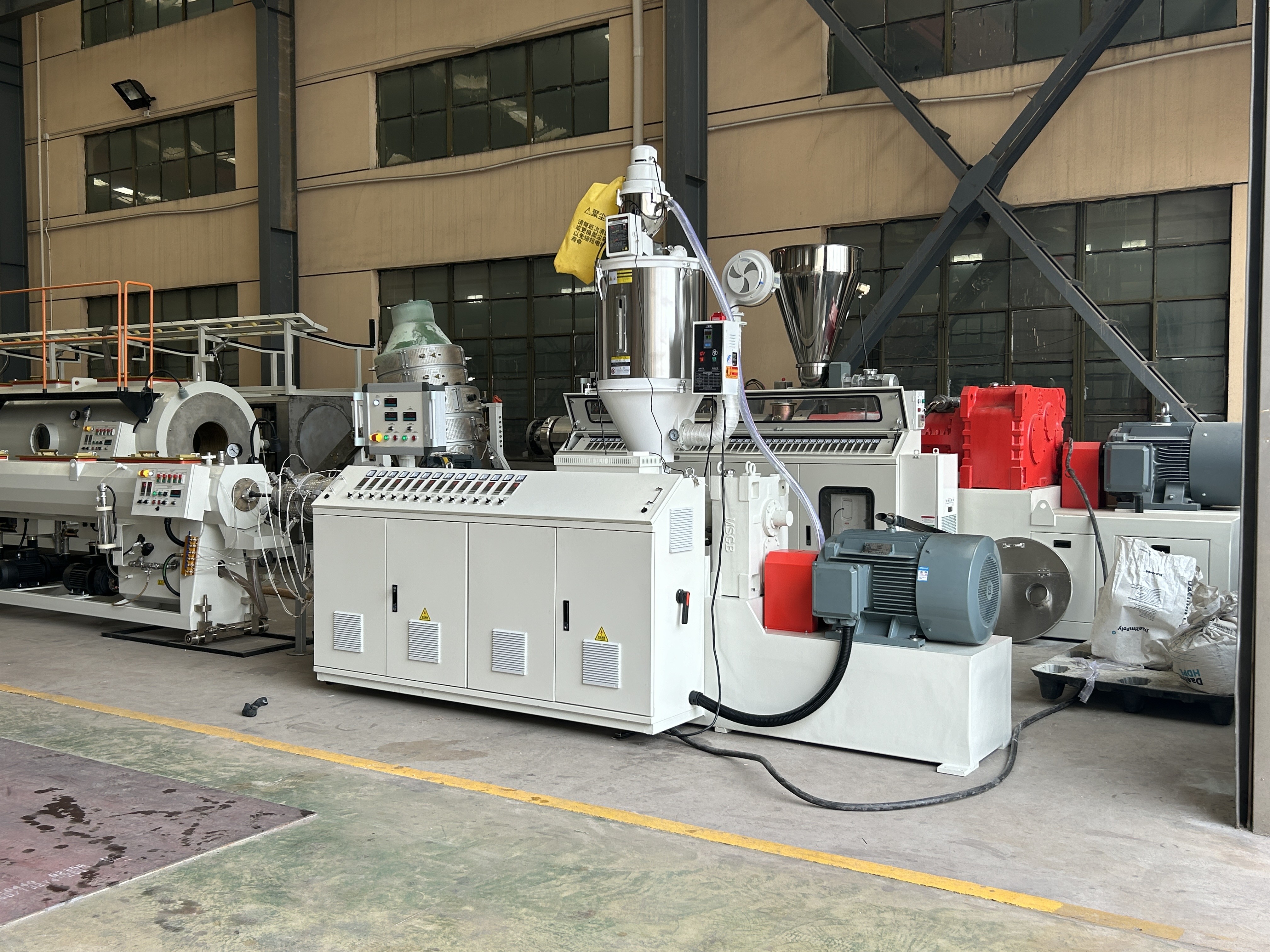

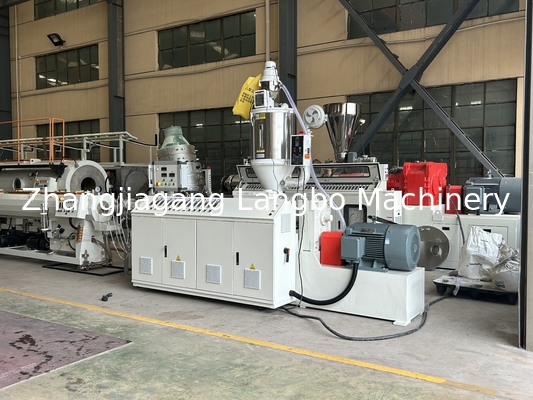

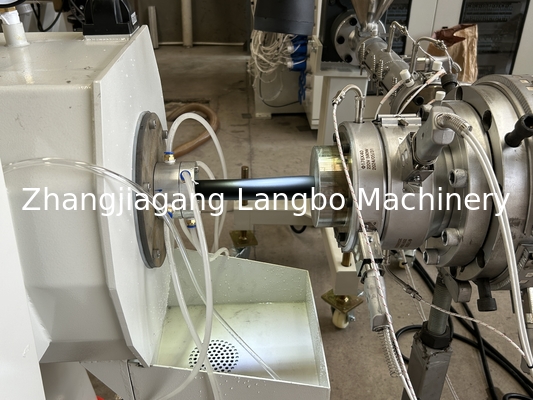

Melting & Extrusion – The material is heated and melted in the screw barrel, then pushed through the die head to form a continuous pipe shape.

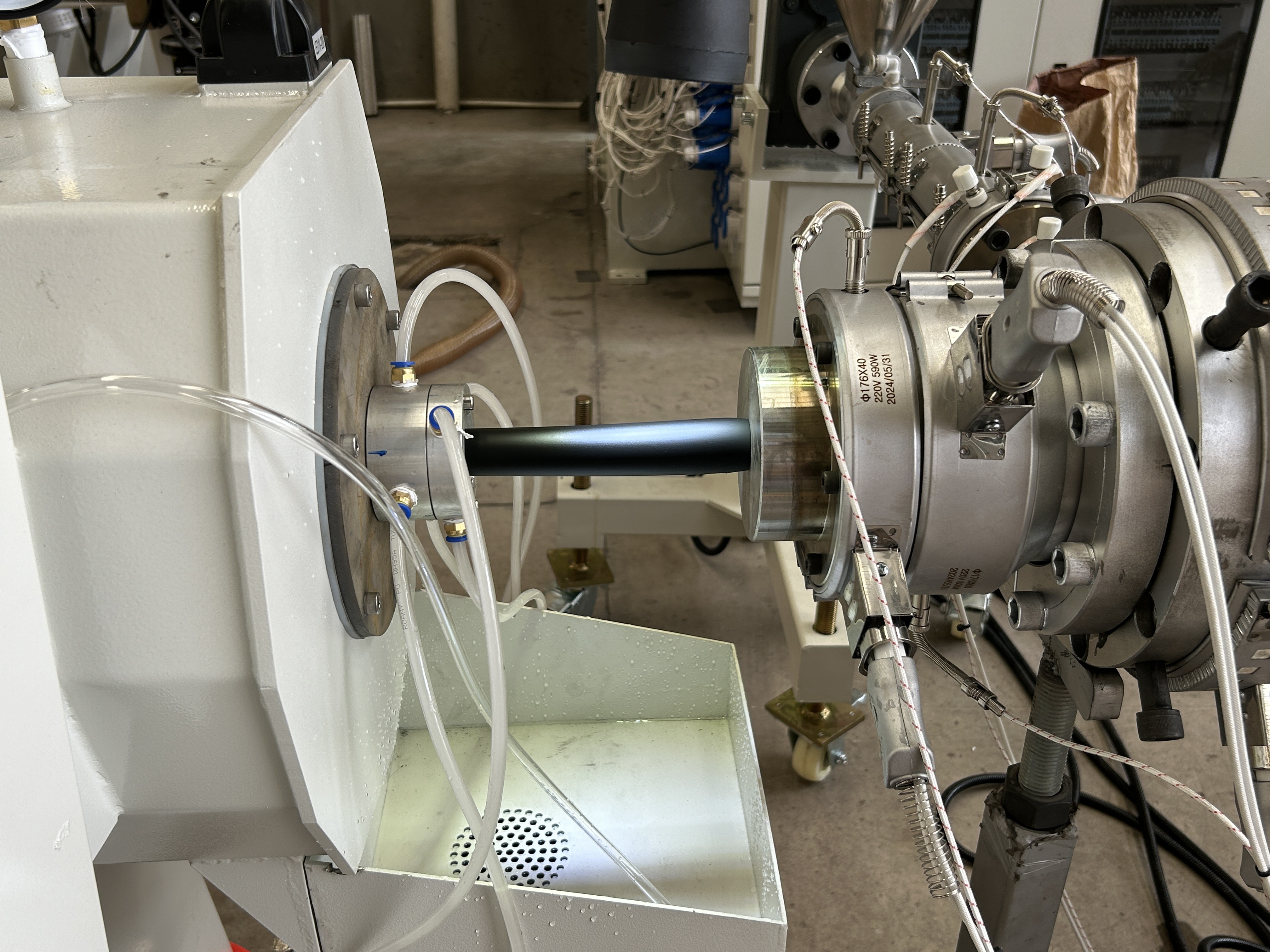

Vacuum Calibration – The pipe passes through a vacuum sizing tank to ensure precise diameter and wall thickness.

Cooling System – The pipe is cooled in a water bath or spray cooling system to solidify its structure.

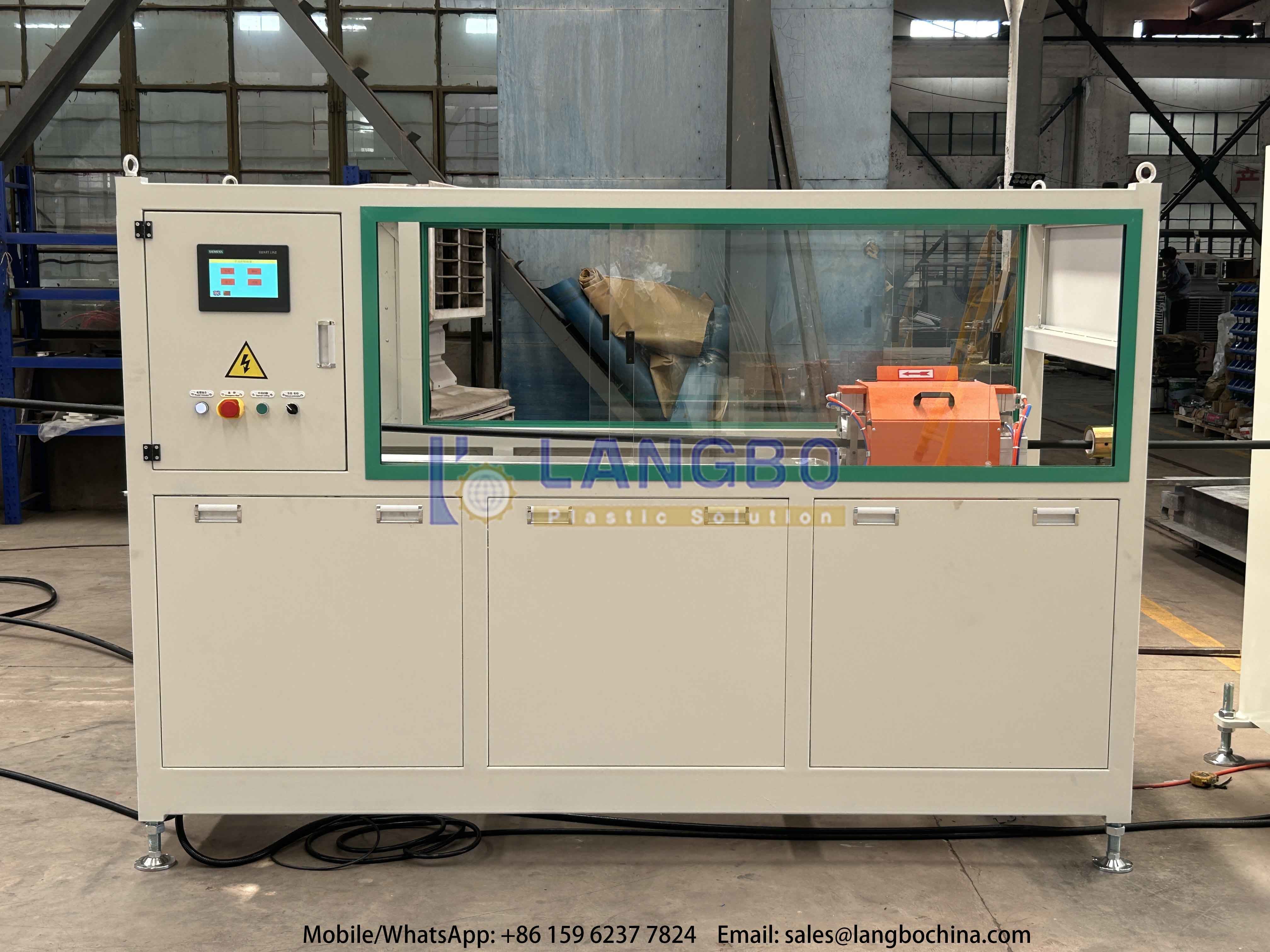

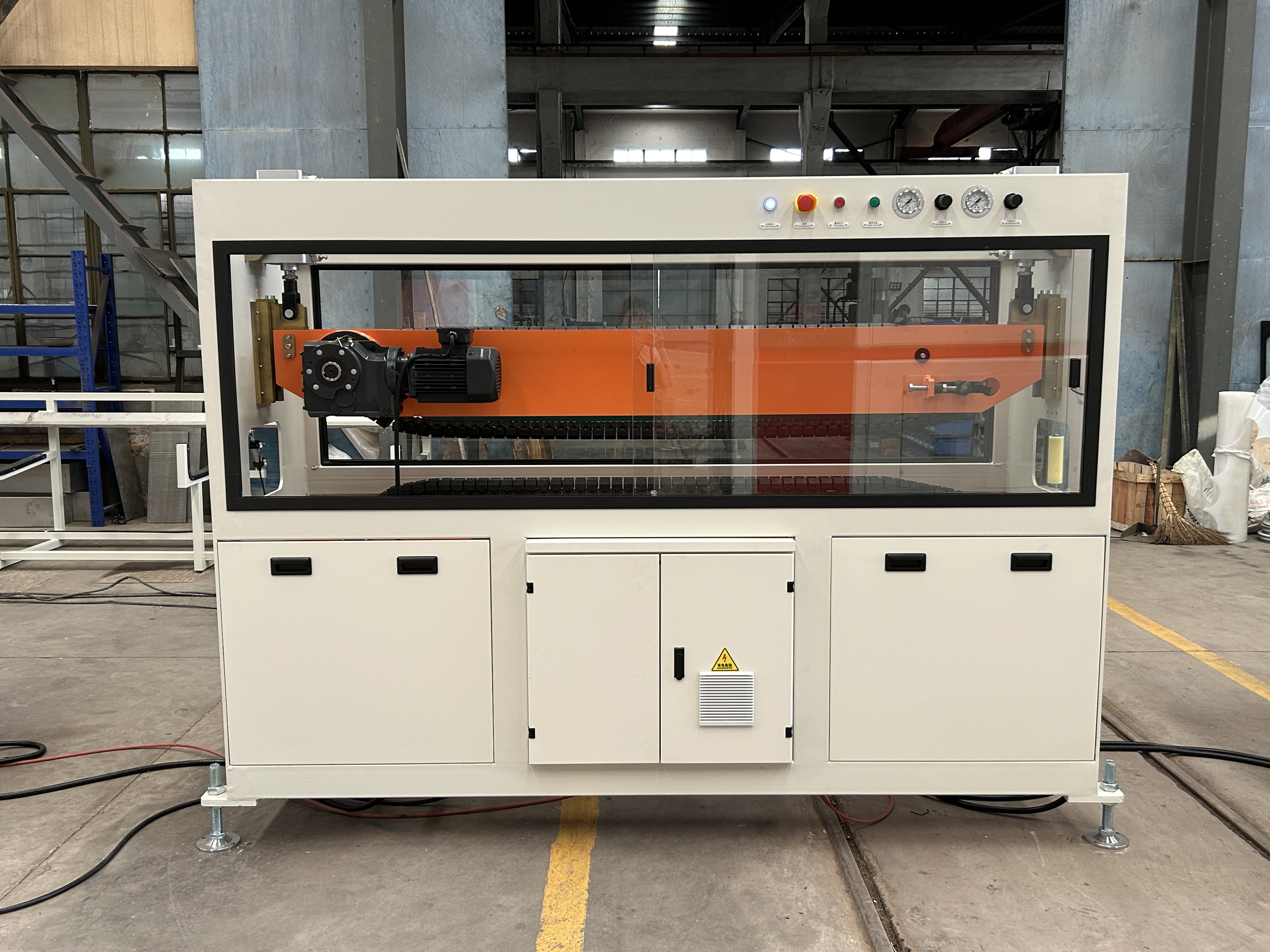

Hauling & Cutting – A puller draws the pipe forward, and an automatic cutter cuts it to the required length.

Stacking & Packaging – Finished pipes are collected and packed for storage or shipment.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
